ALSONIC PL

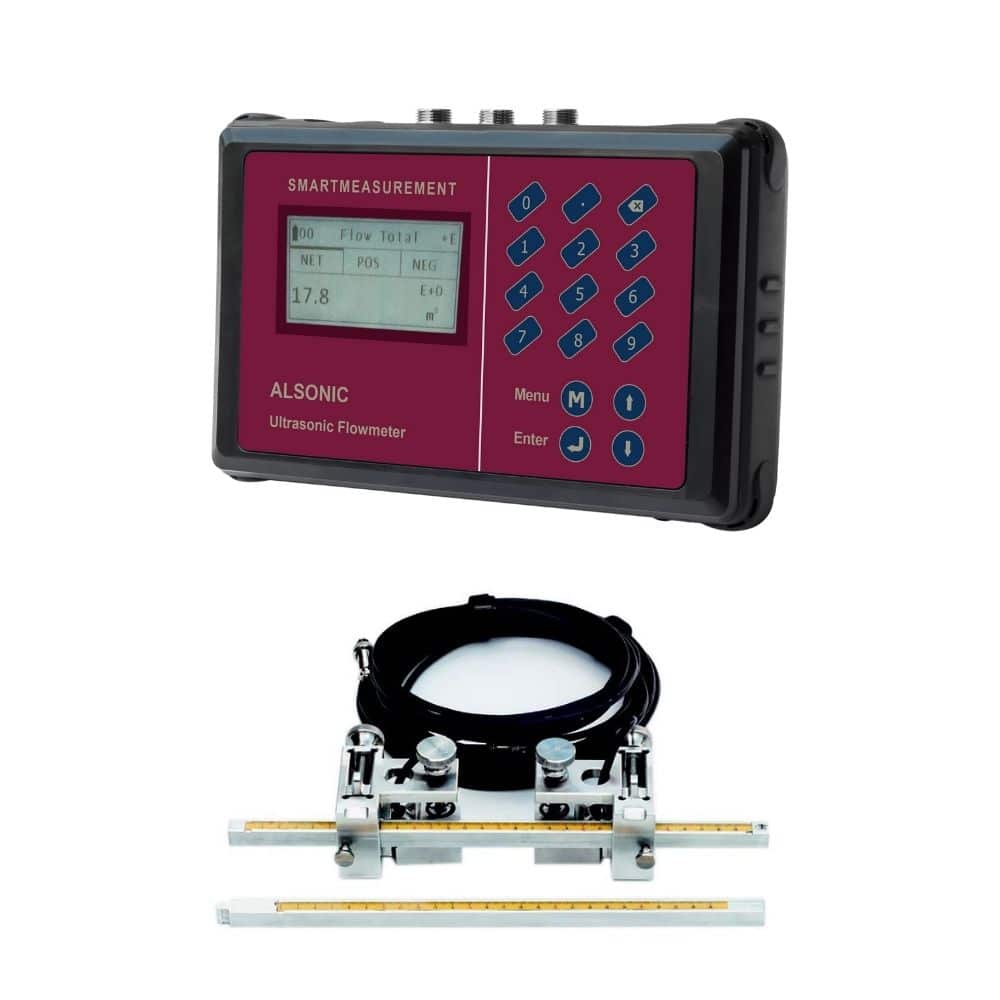

SmartMeasurement’s ALSONIC-PL is a portable transit-time ultrasonic flow and energy meter with clamp-on transducers for non-invasive liquid flow rate measurement. Our microprocessor based, user friendly, field programmable flow measurement technique creates no interruption of the process flow and has low installation costs.
Features
Specifications
PDF Files
Additional Images
Resources
Features
- 2 line LCD display with flow rate, totalizer & diagnostics
- Stores up 512 days of data w/recording interval of 1 to 3600 seconds
- Velocity range of ±0.98 ft/s~±32 ft/s (±0.1 ~±10 m/s)
- Pipe sizes from 1-48″ (25~1200) mm
- Bracket-type transducers for easy installation without mounting belt
- Data logger includes date, totalizer, signal condition & diagnostic code status
- Response time of less than 1 second
Specifications
| Flow Range: | ±0.98 ft/s~±32 ft/s (±0.1 ~±10 m/s) |
| Pipe Sizes: | Clamp-on: 1″~48″ (25mm~1200mm) |
| Temperature: | Ambient: -40°F~+140°F (-40℃~+60℃); Process -40°F~+176°F (-40°C~+80°C) and up to 230°F (130°C) optional |
| Fluid: | Clean liquids w/up 1% particles/bubbles |
| Accuracy: | ±1% of reading (0.3~5 m/s); ±5% of reading (0.1~10 m/s) |
| Transducer Cable: | Standard cable length: (16ft) 5m |
| Keypad: | Membrane type |
| Pipe Materials: | Carbon steel, stainless steel,PVC, copper, PVDF, polypropylene |
| Outputs: | Analog output: 4~20mA, 750 Max Ω, .Modbus/RS485 |
| SD card: | 16Gb for data-logger |
| Display: | 240*128 back-lit LCD |
| Measuring Interval: | User set 1 ~ 99999 sp seconds |
| Humidity: | Up to 99% RH, non-condensing |
| Transducer: | Encapsulated design, IP68 |
| Transmitter: | NEMA3S, IP54 |
| RTD: | less than 12VA |
| Power Supply: | Rechargeable lithium battery, 3000mAh (16 hours continuous operation) |
