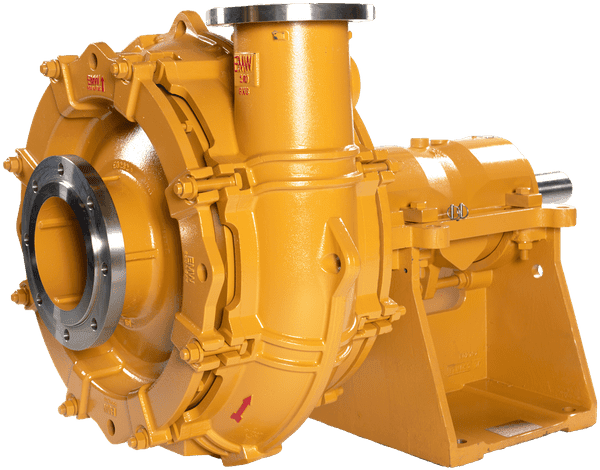

EMW PUMP
Heavy Duty Slurry Pump with abrasion resistant materials and the Wilfley Waterless Sealing Technology
The Wilfley EMW has being designed with the latest flow modeling technologies and finite element analysis to create a pump with optimum wear life. The type of design, combined with Maxalloy 5A hard iron or elastomer lining, creates the ideal slurry pump for high wear applications.
Main Benefits
- Waterless Sealing Technology
- Leakless seal operation
- High durability
- High Chrome and elastomer lined constructions
- High Efficiency, low energy consumption
- Design for up to class 4 slurry services
- Heavy-Duty bearing offer LB10 bearing life of more than 50,000 hours
Main Applications
- Mining and mineral processing
- Aggregates (sand and gravel)
- Lime Slurry
- Food Industry
- Wastewater
- Chemical slurries
Key Characteristics
Capacities:
Metal Construction: up to 17,600 gpm (4,000 m3/hr)
Elastomer Construction: up to 6,385 gpm (1,450 m3/hr)
Heads:
Metal Construction: up to 312 ft (95m)
Elastomer Construction: up to 180 ft (55m)
Max Working Pressure:
Metal Construction: up to 232 psi (16 bar)
Elastomer Construction: up to 203 psi (14 bar)
Max Temperature:
230°F (110°C)
Discharge Sizes:
Metal Construction: From 2″ (50.8 mm) to 12″ (304 mm)
Elastomer Construction: From 2″ (50.8 mm) to 8″ (203 mm)
Waterless Sealing: Wilfley’s Technological Advantage
The Wilfley Waterless Seal Technology is a proven design combining a dynamic and static seal, that excels in demanding applications and is trusted by companies all over the world.
| Materials Options |
|---|
|
| Seal Options |
|---|
|
| Documents |
|---|
|
EMW Pump Performance Range Capacities

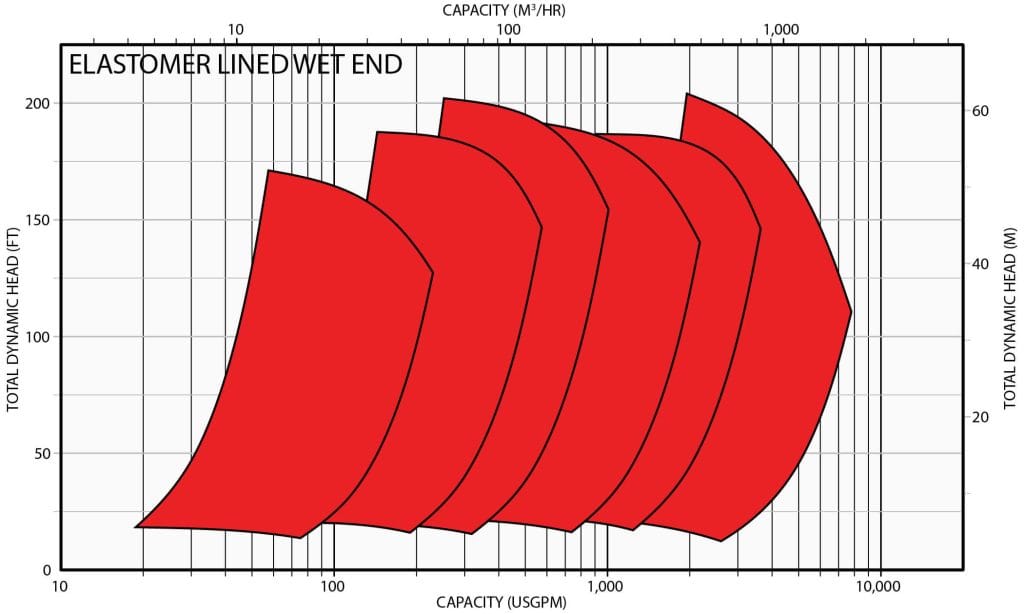

Range Capacities For Rubber

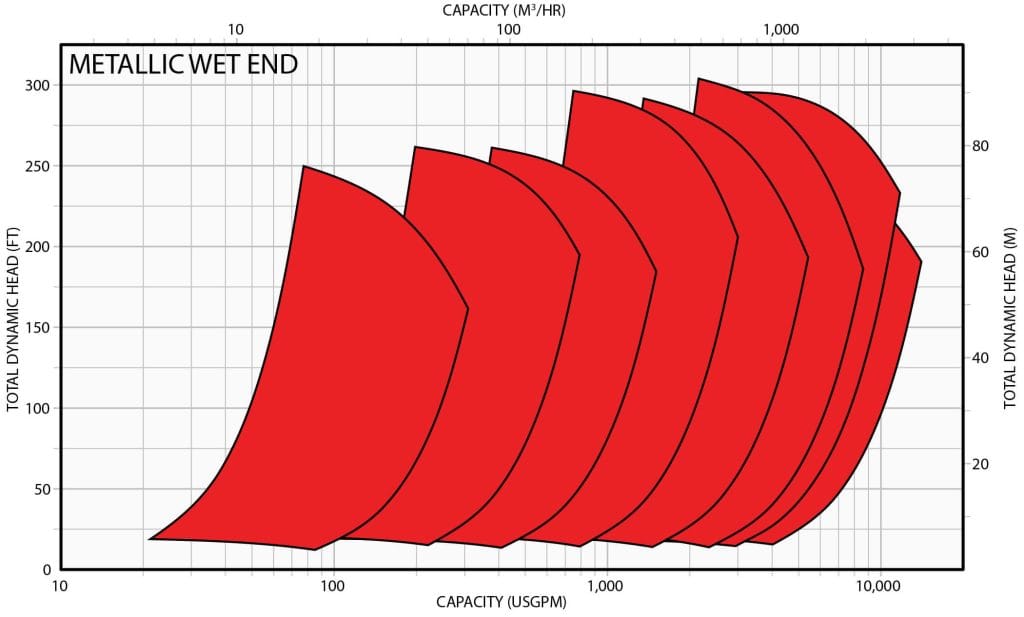

Range Capacities For Metal
Precision Engineering, Proven Reliability

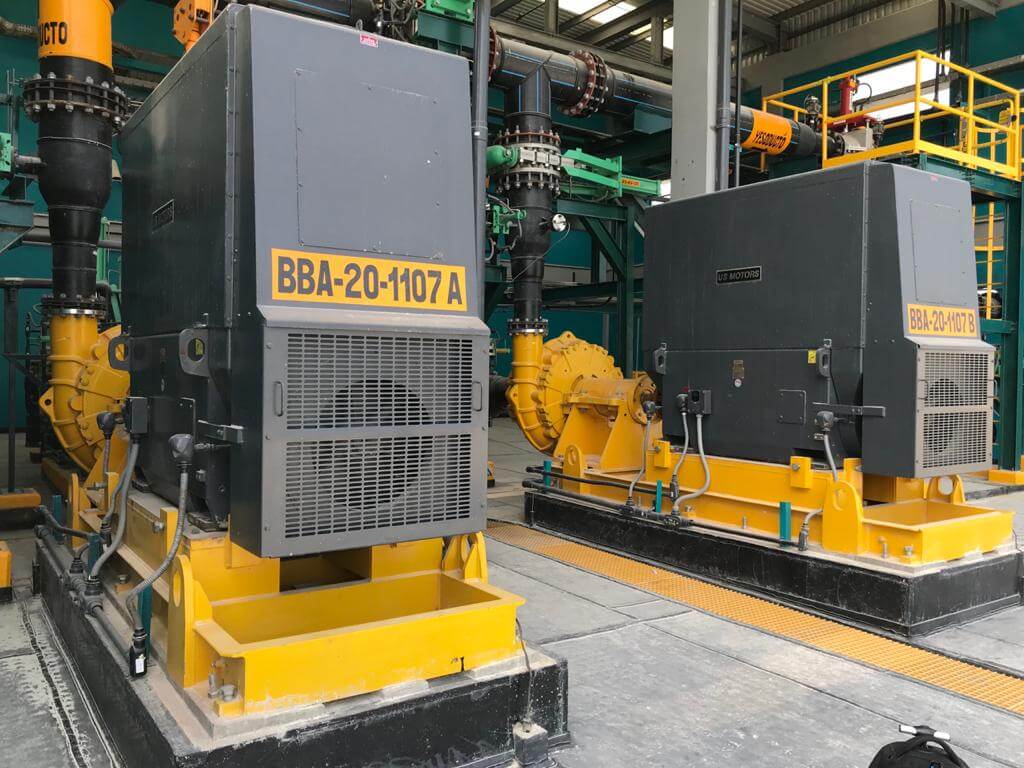

The EMWs on the right pump Gypsum Slurry to a tailing pond in a Phosphoric Acid plant Mexico. The pumps exceeded customer’s expectations with its wear part longevity and pump performance.
