HD Slurry Pump
The HD is our most robust side suction slurry pump with the highest Waterless Sealing capability of the Wilfley Slurry pump range. Designed for up class 3 slurry services.
The Kpro Slurry pump is Wilfley’s latest iteration of the classic side suction design that started it all. Easy maintenance and design for up to class 3 slurry services. No seal water required even with high slurry concentrations.
Main Benefits
- Waterless Sealing Technology
- Leakless seal operation
- Highest intake sealing capability
- High durability
- A maintenance engineer’s delight
- The case can be easily removed without disturbing suction or discharge piping
- Designed for up to class 3 slurry services
Main Applications
- Mining and mineral processing
- Wastewater
- Cement
- Thickener underflow
Key Characteristics
Capacities:
Up to 5,655 gpm (1,284 m3/hr)
Heads:
Up to 295 ft (90 m)
Max Working Pressure:
130 Psig (9 Bar)
Particle Size:
Up to 1.4 in (36 mm)
Discharge Sizes:
From 1″ (25.4 mm) to 8″ (203 mm)
Waterless Sealing: Wilfley’s Technological Advantage
The proven engineering based on Wilfley’s dynamic waterless sealing is trusted by many companies all over the world.
| Materials Options |
|---|
|
| Seal Options |
|---|
|
| Documents |
|---|
|

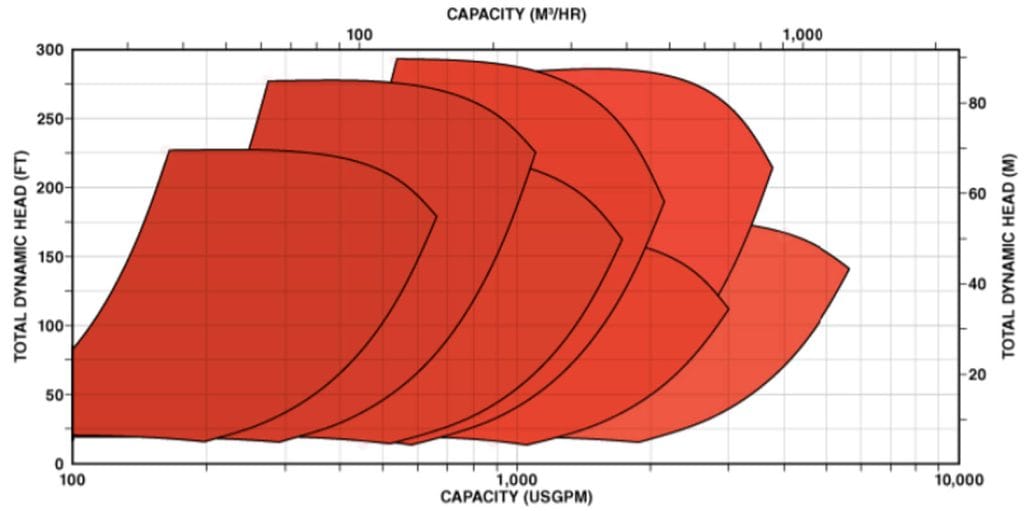

HD Pump Performance Range Capacities
Flows up to 5,655 USGPM (1,284 m3/h)
Heads up to 295 ft (90 m)
Particle size up to 1.4 in (36 mm)
Precision Engineering, Proven Reliability

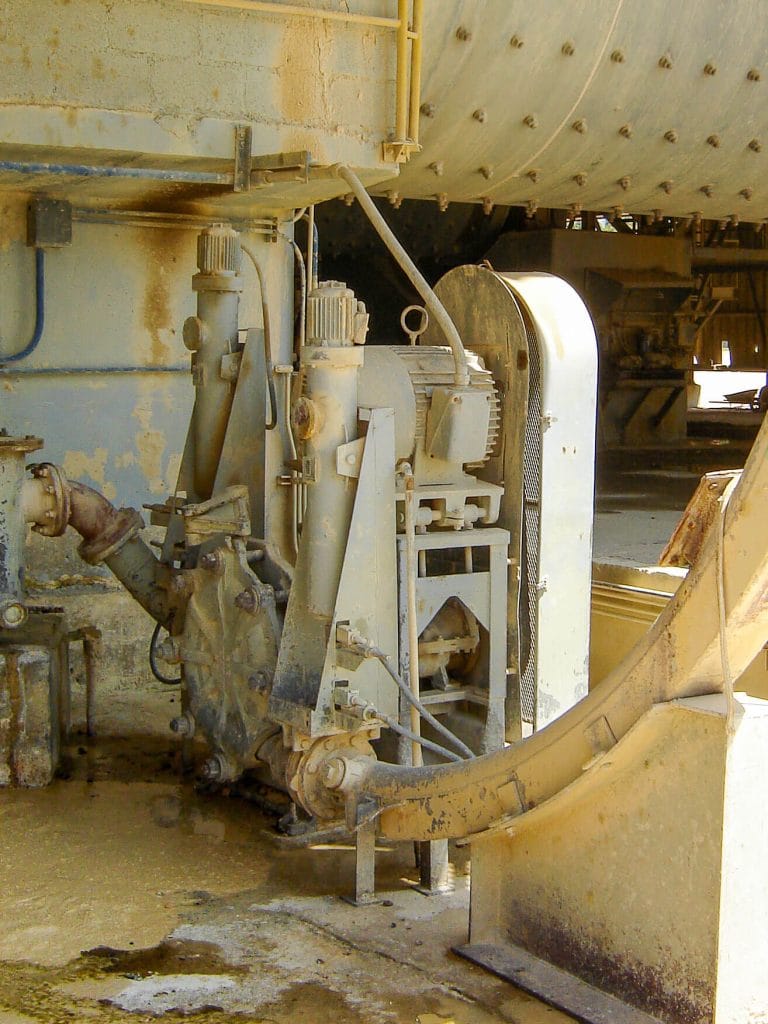

The HD pump on the right handles 65 percent of limestone solids by weight from a ball mill in a wet cement plant. The plant works 24/7, and the Wilfley pumps are vital to the success of this customer due to the no water seal consumption and the life of the Wilfley wear-resistant materials
