KPro Slurry Pump
Medium duty slurry pump designed for easy maintenance and with the Wilfley Waterless Seal Technology.
The Kpro Slurry pump is Wilfley’s latest iteration of the classic side suction design that started it all. Easy maintenance and design for up to class 3 slurry services. No seal water required even with high slurry concentrations.
Main Benefits
- Same footprint than the K pump with an upgrade design
- Waterless Sealing Technology
- Leakless seal operation
- High durability
- A maintenance engineer’s delight
- Case can be easily removed without disturbing suction or discharge piping
- Designed for up to class 3 slurry services
- Froth handling
Main Applications
- Mining and mineral processing
- Aggregates (sand and gravel)
- Lime Slurry
- Food Industry
- Wastewater
Key Characteristics
Capacities:
Up to 5,685 gpm (1,291 m3/hr)
Heads:
Up to 235 ft (72 m)
Max Working Pressure:
Particle Size:
Up to 1 in (25.4 mm)
Discharge Sizes:
From 1″ (25.4 mm) to 8″ (203 mm)
Waterless Sealing: Wilfley’s Technological Advantage
The proven engineering based on Wilfley’s dynamic waterless sealing is trusted by many companies all over the world.
| Materials Options |
|---|
|
| Seal Options |
|---|
|
| Documents |
|---|
|

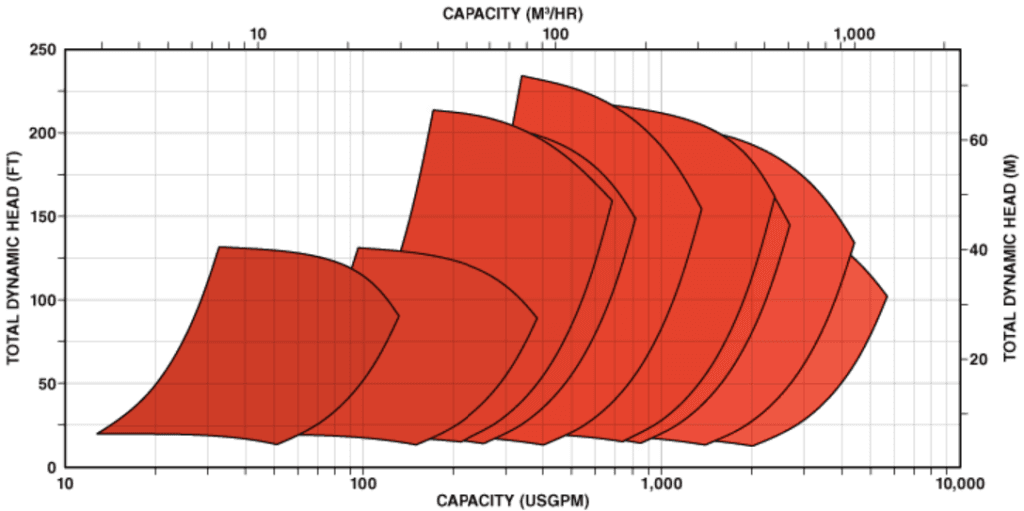

Capacities
Flows up to 5,685 usgpm (1,291 m3/h)
Heads up to 235 ft (72 m)
Particle size up to 1 in (25 mm)
Precision Engineering, Proven Reliability

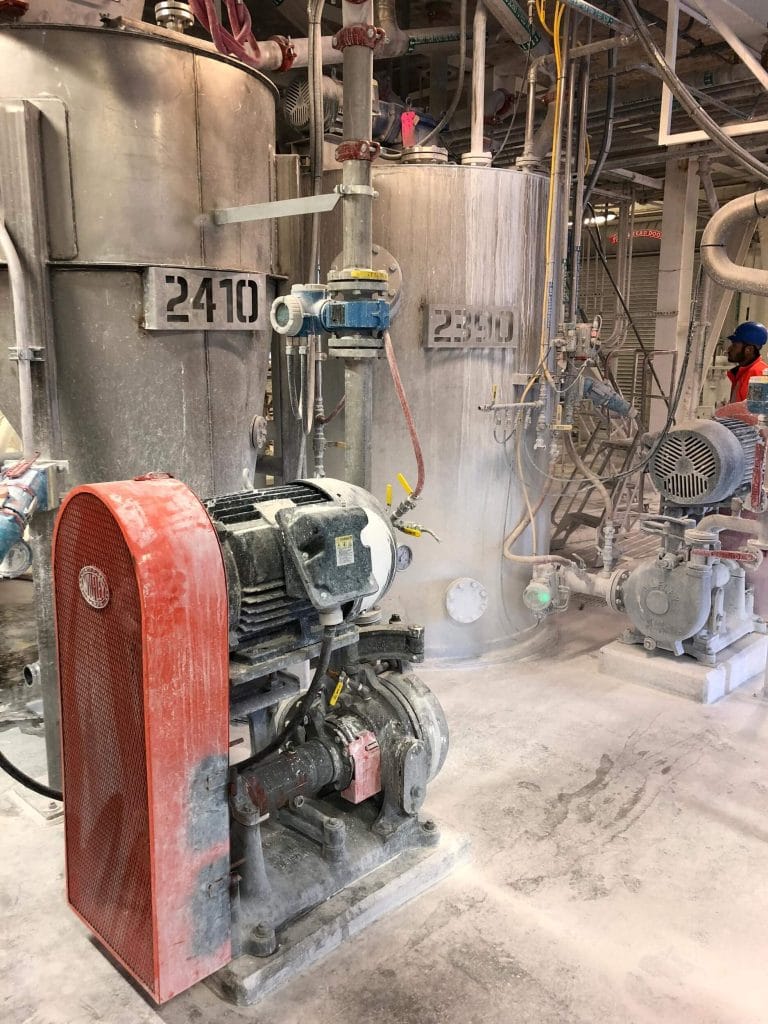

The Kpro pumps on the right handles 71% of calcium carbonate by weight. The pumps deliver an outanding performance under severe conditions that involve wear resistance and froth handling capabilities
