PowerView 101 offers a simple connection to optional components and displays over 50 standard SAE J1939 parameters

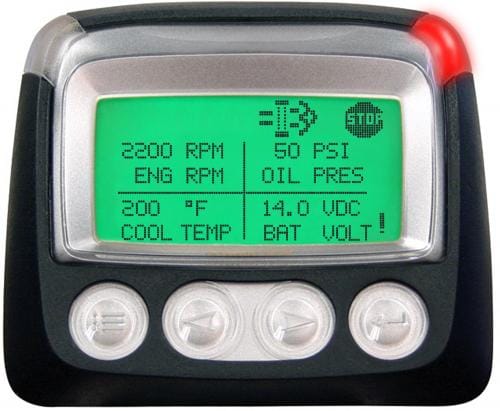

The PowerView PV101 display is a multifunction tool that enables equipment operators to view standard engine and transmission parameters and active/stored trouble codes. The display can show a single or a four-parameter simultaneous display with text descriptions for most common fault conditions. The enhanced alarm indicators have ultra-bright alarm and shut-down LEDs
Operating Voltage: 8 – 32 VDC
Reversed Polarity: Withstands reversed battery terminal polarity indefinitely within operating temperatures
Environmental
- Operating Temperature: -40° to +185° F (-40° to +85° C)
- Display Viewing Temperature: -20° to +185° F (-29° to +85° C)
- Storage Temperature: -40° to +185° F (-40° to +85° C)
- Environmental Sealing: IP68, ± 5 PSI (± 34kPa)
Power Supply Operating Current
- (@ 14VDC) 52 mA min.: 300 mA max
- (@ 32VDC) 1A max (with LCD heater)
CAN Bus: SAE J1939 compliant
Case: Polycarbonate/polyester
Maximum Panel Thickness: 3/8 inch (9.6 mm)
Auxiliary RS485 Communications Port
- User configurable as MODBUS MASTER or MODBUS RTU SLAVE
- MASTER ACTIVE (default) drives optional PVA or PVM gages
- SLAVE ACTIVE offers user adjustable communication parameters
Resistive Input: user selectable as one of the following
- Backlighting Potentiometer: 1 K Ohm, 1/4 W
- Murphy Fuel Sender: 33 Ohm full, 240 Ohm empty set standard from factory for use with Murphy fuel sender. Programmable for use with non-Murphy fuel senders.
Shipping Weights (all models): 1 Lb. (450 g.)
Shipping Dimensions (all models): 5 x 6 x 6 in. (127 x 152 x 152 mm)
Clamp: PBT
Connectors: 6-pin Deutsch DT Series
WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.
PV101-C
- Sales Bulletin – Model PV101-C (1110823; revision date – 10/2016)
- Sales Bulletin – Model PV101-C-HAZ (1411568; revision date – 09/2015)
- Sales Flyer – Model PV101-C (1100005; revision date – 01/2017)
- Sales Flyer – Model PV101-C – Russian Version (1100005-R; revision date – 04/2012)
- Tier 4 Overview (1110836; revision – date 08/2016)
- Sales Bulletin – Model PV101-C Configuration Tool (1110834; revision date – 08/2011)
PV101-A
- Sales Bulletin – Model PV101-A (1110823; revision date – 09/2016)
- Sales Bulletin – Model PV101-A-HAZ (1411568; revision date – 09/2015)
PV101-HAZ
| Part Number | Model | Description | Languages Available |
|---|---|---|---|
| 78700615 | PV101-C-MSTD-TlER4 | Murphy STD | English, Spanish, French, Italian, German |
| 78700610 | PV101-C-M01-TlER4 | Murphy STD Russian | English, Russian |
| 78700611 | PV101-C-M02-TlER4 | Murphy STD Chinese | English, Chinese |
| 78700612 | PV101-C-M03-TlER4 | Murphy STD Japanese | English, Japanese |
| 78700613 | PV101-C-M04-TlER4 | Murphy STD Brazilian Portuguese | English, Brazilian Portuguese, French, German, Spanish |
| 78700614 | PV101-C-M05-TlER4 | Murphy STD Czech | English, Czech, French, German, Spanish |
| 78700439 | PV101-C | Murphy STD | English, Spanish, French, Italian, German |
| 78700497 | PV101-C-M01-TlER4 | Murphy STD Russian | English, Russian |
| 78700498 | PV101-C-M02 | Murphy STD Chinese | English, Chinese |
| 78700499 | PV101-C-M03 | Murphy STD Japanese | English, Japanese |
| 78700500 | PV101-C-M04 | Murphy STD Brazilian Portuguese | English, Brazilian Portuguese, French, German, Spanish |
| 78700501 | PV101-C-M05 | Murphy STD Czech | English, Czech, French, German, Spanish |
| 78700435 | PV101-C Configuration Tool Kit | User Configuration Tool | |
| 78700244 | PV101-A | Murphy STD | English, Spanish, French, Italian, German |
| 78700396 | PV101-A-M01 | Murphy STD Russian | English, Russian |
| 78700409 | PV101-A-M02 | Murphy STD Chinese* | English, Chinese |
| 78700411 | PV101-A-M03 | Murphy STD Japanese* | English, Japanese |
| 78700248 | PV101-A-HAZ | Murphy STD, Hazardous Environment | English, Spanish, French, Italian, German |
| 78700581 | PV101-C-HAZ | Murphy STD, Hazardous Environment | English, Spanish, French, Italian, German |
| 78700428 | PV101 Shield | Impact Shield Assembly | |
| 78700430 | HAZ Environment Kit | PV101-A-HAZ with PV101 shield | English, Spanish, French, Italian, German |
| *Added features not available in these language models. |
