Murphy by Enovation Controls

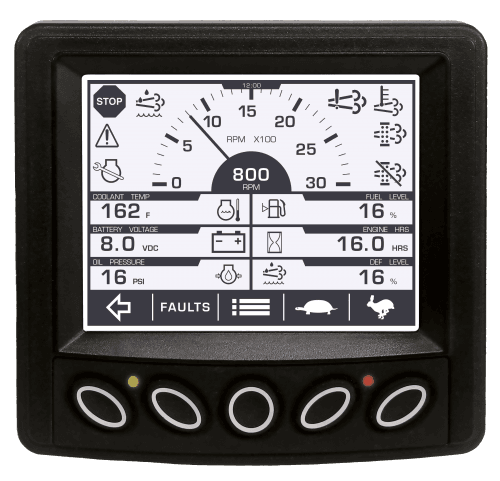

The Murphy PowerView 380 features robust, multifunction displays for advanced monitoring of multiple electronic engines.
It’s capable of monitoring multiple engines and machine parameters on an easy-to-read 3.8-inch (97mm) QVGA monochrome LCD. The display is capable of handling sophisticated engine diagnostics as well as basic engine alarm/shutdown. Customize the PV380 display using the PowerVision Configuration Studio®, an intuitive tool designed to make customization simple.
Using the software tool, users can tailor basic graphics, designate screen layout and define custom parameters. The PV380 is equipped with five tactile push buttons to quickly access a convenient menu. In addition, a backlit and heated graphic display with LEDs indicate alarm or shutdown status.
Effective July 1, 2019, Enovation Controls is discontinuing the production of the PV380-R1. In this instance, Enovation Controls has an alternative which provides similar functionality to the discontinued item. The PV380-R2 (ref table below) provides the same form and fit with additional memory and processor speed and replaces the 5V output with a second 500mA low-side digital output.
We request you carefully review this information and notify relevant stakeholders within your organization so plans for the transition to the alternative can be made. In addition, we urge you to work with your Enovation Controls sales representative to transition the PV380-R1 to the PV380-R2.
| PV380-R1 | PV380 – R2 | |
| Processor | Arm Cortex M3 512KB Flash 80MHz | Arm Cortex M4 2MB Flash 168MHz |
| Inputs | 0 – 5V (analog input) | 0 – 5V / 4 – 20mA / Resistive /Digital (analog input) |
| Outputs | (1) 500mA low-side digital output (1) 5V (70mA) digital output | (2) 500mA low-side digital output |
| RTC | N/A | RTC Available |
To best serve you, all inquiries related to product discontinuation should be directed through your normal Totalmas Sdn Bhd sales channels or by contacting our Inside Sales team at sales@totalmas.com.
- Operating Voltage: 6-36 VDC
- Power Consumption: 4W max
- Vibration and Shock: 7.86 random vibe (5-2000HZ) and ±50g shock in 3 axes
- Reversed Polarity: withstands reversed battery terminal polarity
- Operating Temperature: -40° to 185° F (-40° to 85° C)
- Storage Temperature: -40° to 185° F (-40° to 85° C)
- Communications: (1) CAN 2.0B; J1939 Protocol; Proprietary Messaging; (1) RS-485 serial
- EMC/EMI:
- 2004/108/EC and 2006/95/EC directives
- EN61000-6-4:2001 (emission)
- EN61000-6-2:2001 (immunity)
- EN-50121-3-2 and EN 12895
- Connectors: Deutsch DT Series 6 and 12 pin
- Inputs: (4) resistive analog; (3) analog; 0-5V/4-20mA analog or digital; (1) frequency 2-10000Hz, 3.6-120VAC
- Outputs:
- (2) 500 mA; switched low-side
- SAE J1113/2, 4, 11, 12, 21, 24, 26 and 41
- Display: 3.8” (97mm) QVGA (320×240 pixels); monochrome transflective LCD with white LED backlight and heater
- Viewing Angle: ±50 horizontally; +45°/-60° vertically
- Keys: 5 tactile push buttons
- Alarms: Red and amber warning LEDs; capable of set point-triggered output for external piezo buzzer or shutdown relay
- Real-time clock: With Li-ion rechargeable battery backup
WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.
| Part Number | Description | Notes |
|---|---|---|
| 78700708 | PV380-R3, Murphy Standard | Display |
| 78700609 | PV380-R2, Murphy Standard | Display |
| 78700641 | PV380-R2-MECH, Mechanical Configuration | Display |
| 78051077 | Seal, PV380-350 gasket | Service |
| 78001104 | Connector Kit, PV380, 12 and 6 position connector | Accessories |
| 78001060 | 12 position, one foot whip harness | Accessories |
| 78090100 | Programming Kit, PV380-350 with dongle | Accessories |
