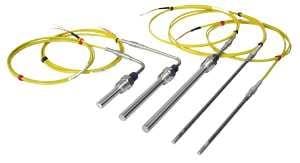

The initial offerings are K type thermocouples with 6-inch and 10-inch long 1/4-inch diameter probes. The thermocouples are shipped straight but can be bent with standard tubing benders anywhere along its length to a 90° angle to minimize clearance required and help prevent damage due to personnel working on the unit. The thermocouple is tip sensitive to minimize ambient temperature influence and should be inserted between 25% and 75% of the piping inside diameter or enough to minimize any skin temperature affect on the tip of the probe when installed in vessels.

| Part Number | Model/Description | Notes |
|---|---|---|
| 10051331 | Thermocouple, Type K, 1/4Dia. Tube x 6”L | w/5’ Thermocouple Extension Wire |
| 10051325 | Thermocouple, Type K, 1/4Dia. Tube x 6”L | w/15’ Thermocouple Extension Wire |
| 10051326 | Thermocouple, Type K, 1/4Dia. Tube x 6”L | w/30’ Thermocouple Extension Wire |
| 10051327 | Thermocouple, Type K, 1/4Dia. Tube x 6”L | w/50’ Thermocouple Extension Wire |
| 10051395 | Thermocouple, Type K, 1/4Dia. Tube x 6″L | w/75′ Thermocouple Extension Wire |
| 10051328 | Thermocouple, Type K, 1/4Dia. Tube x 6”L | w/100’ Thermocouple Extension Wire |
| 10051332 | Thermocouple, Type K, 1/4Dia. Tube x 10”L | w/5’ Thermocouple Extension Wire |
| 10051323 | Thermocouple, Type K, 1/4Dia. Tube x 10”L | w/15’ Thermocouple Extension Wire |
| 10051317 | Thermocouple, Type K, 1/4Dia. Tube x 10”L | w/30’ Thermocouple Extension Wire |
| 10051322 | Thermocouple, Type K, 1/4Dia. Tube x 10”L | w/50’ Thermocouple Extension Wire |
| 10051396 | Thermocouple, Type K, 1/4Dia. Tube x 10″L | w/75′ Thermocouple Extension Wire |
| 10051321 | Thermocouple, Type K, 1/4Dia. Tube x 10”L | w/100’ Thermocouple Extension Wire |
| 10707436 | Thermowell, ½”NPT, ¼” T, 2.0”L | Assembly 304SS |
| 10707437 | Thermowell, ½”NPT, ¼” T, 4.5”L | Assembly 304SS |
| 10707438 | Thermowell, ½”NPT, ¼” T, 7.5”L | Assembly 304SS |
