Coriolis Flow Meter - ALCM-MB

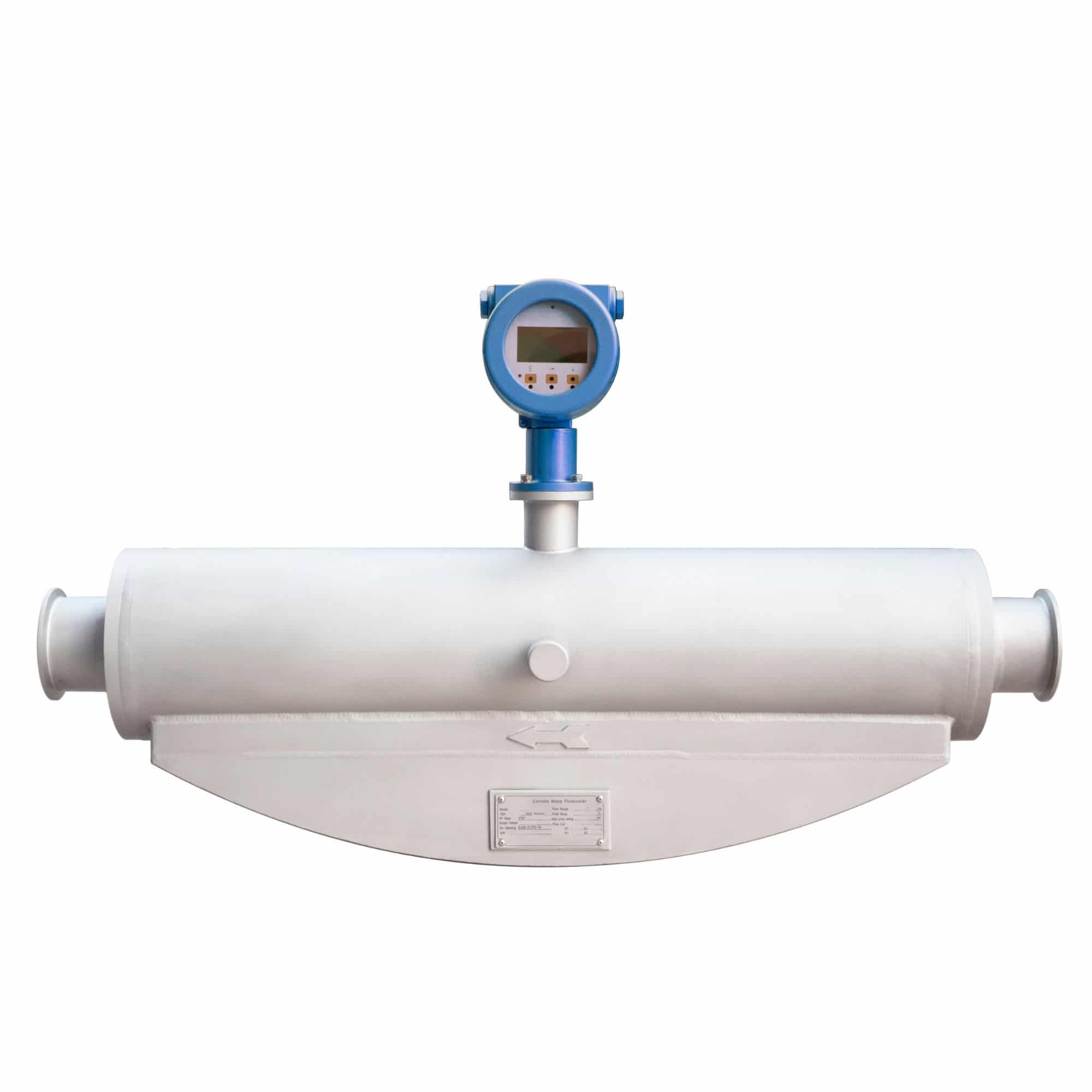

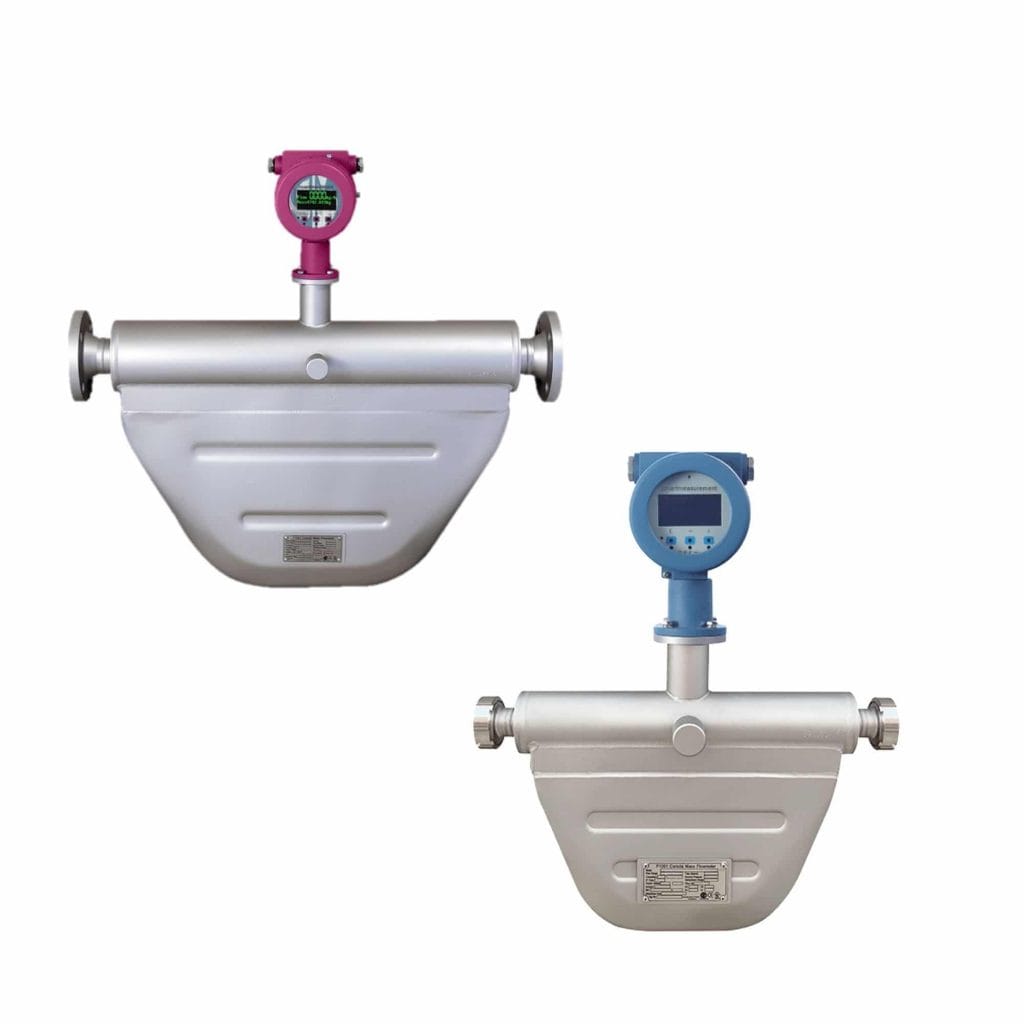

SmartMeasurement’s ALCM-MB Micro-Bend Coriolis mass flow meter employs a unique tube arrangement, with U-shaped measuring tubes that are formed with significantly smaller radii versus traditional U-tube type Coriolis meters. The more gradual radius of our mass flow meters’ tube geometry allows for a more compact design and significantly reduced pressure differentials versus other Coriolis meters.
Features
Specifications
PDF Files
Additional Images
Features
- Suitable for aggressive & contaminated media
- Measurement of mass flow, density, temperature & volume flow
- High rotation frequency & well-balanced measuring tubes
- Excellent purging & sterilization capabilities thanks to a construction that is free of dead spots
- Operates at temps up to 662°F (300°C)
- Individual 8-point-calibration including report
- Optional EX protection
Specifications
| Flow Range: | 3,300～2,200,00lb/hr.(1500～1000000 kg/hr.) |
| Process Connections: | Flanged (ANSI, DIN, Tri-Clamp®) |
| Line Sizes: | ½”~8”(15-200 mm) |
| Process temperature: | -58~392 °F (-50~200 °C) -std |
| Tube geometry: | U-Tube with Micro Bend |
| Accuracy: | ±0.5% of reading(std), 0.2% or 0.15% (opt) |
| Repeatability: | ±0.075% of reading |
| Frequency: | 10-2000 Hz |
| Engineering Units (Mass): | kg, lb, ton |
| Display: | Color Graphic OLED |
| Engineering Units (Temp.): | °C, °F |
| Engineering Units: (Volume): | m³, Liter, US Gallon, Imperial Gallon |
| Zero Stability: | 0.1% full-scale |
| Ambient temperature: | -5~312 °F (-20~55 °C) |
| Zero Drift (%FS / °C): | 0.005 |
| Max Working Pressure: | 360 psig (2.5MPa) std, 930 psig optional |
| Measuring Tube Mat’l: | SS per DIN1.4571 (AISI 316Ti) standard |
| Power Supply: | 24 VDC, ± 20%; 86~260VAC,50~60Hz |
| Housing Material: | SS #304 |
| Outputs: | 4-20 mA, 0-10 kHz pulse, RS485 |
| Power Consumption: | Less than 6W |
| Density Measuring Range: | 12.5-125lb/ft³ (0.2~2.0 g/cc) |
| Density Accuracy: | ±0.06 b/ft³ (0.001 g/cc) |
| Temperature Accuracy: | up to ±1°F (°C) |
