Orifice Plate Flow Meter Calculation: A Technical Guide for Malaysian Industry (2026)

How much revenue is your facility losing due to a slight error in your orifice plate flow meter calculation? In the demanding environments of Malaysian palm oil refineries and oil and gas platforms, even a minor deviation can lead to cascading process inefficiencies and costly downtime. You’ve likely faced the frustration of inconsistent readings or seen how quickly corrosion can degrade a plate in harsh chemical settings. It’s a challenge that requires a steady, experienced hand to resolve.

This guide provides a reliable framework to master flow measurement principles while ensuring your hardware meets the ISO 5167-2:2022 standard. We’ll explore the technical variables necessary for precision, including beta ratio limits and pressure tap configurations. Totalmas Sdn Bhd serves as your authoritative partner for these solutions, offering comprehensive technical support and fast shipping across Peninsular Malaysia and East Malaysia, including Sabah and Sarawak.

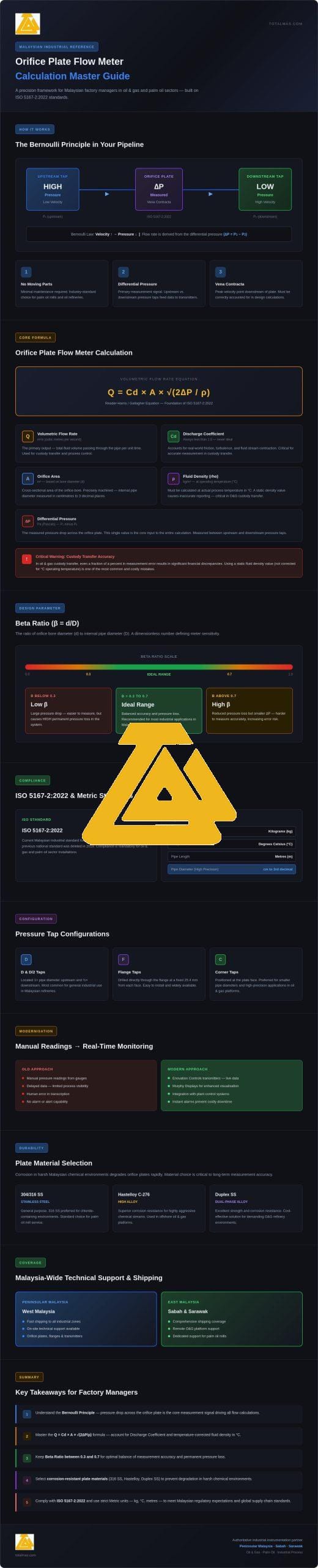

Fundamentals of Orifice Plate Flow Measurement

An orifice plate functions as a differential pressure flow meter, serving as a primary element within a piping system. It’s a thin, flat plate with a precisely machined hole, or bore, positioned between two flanges. Because they lack moving parts and require minimal maintenance, these devices remain the global standard for cost-effective flow measurement in Malaysian palm oil mills and oil refineries. The primary assembly consists of the orifice plate, specialized flanges, and pressure taps that allow for the collection of differential pressure data. This data is the foundation for any accurate Fundamentals of Orifice Plates and subsequent flow analysis.

Totalmas Sdn Bhd provides the technical expertise and hardware necessary to implement these principles effectively. Whether your facility is located in Peninsular Malaysia or across East Malaysia in Sabah and Sarawak, we offer comprehensive technical support to optimize your flow systems. Our logistics network ensures fast shipping of orifice plates and flanges to minimize your facility’s downtime.

The Bernoulli Principle in Industrial Piping

The physics of the orifice plate flow meter calculation relies on the Bernoulli Principle. As fluid moves through the constricted bore of the plate, its velocity must increase to maintain the mass flow rate. This increase in kinetic energy results in a corresponding drop in static pressure. The point where the flow stream is at its narrowest and the velocity is at its peak is known as the vena contracta. Understanding this phenomenon is vital for Malaysian engineers. The pressure difference measured between the upstream tap and the downstream tap directly correlates to the flow rate. Velocity increases. Pressure drops. If the vena contracta isn’t correctly accounted for during the design phase, measurement accuracy will suffer, leading to process inefficiencies.

Metric Units and Standards for 2026

Precision in industrial fluid handling requires strict adherence to international standards. As of 2026, the Malaysian industrial sector follows ISO 5167-2:2022 for the design and installation of these meters, as the previous national standard was deleted in 2019. All technical data must be recorded using the Metric system to ensure compatibility with global supply chains. This includes measuring mass in kilograms, pipe lengths in meters, and process temperatures in degrees Celsius. For high-precision installations, internal pipe diameters should be measured in centimeters to the third decimal place. Adhering to these units ensures that your orifice plate flow meter calculation remains consistent with international benchmarks and local regulatory expectations.

The Orifice Plate Flow Meter Calculation Formula

Calculating the exact flow rate requires more than just a simple pressure reading. The orifice plate flow meter calculation involves a complex interplay between fluid dynamics and plate geometry. At its core, the volumetric flow rate equation determines how much fluid passes through the pipe based on the differential pressure across the plate. However, theoretical results rarely match real-world observations. This discrepancy is accounted for by the Discharge Coefficient (Cd), a variable that is never 1.0. Friction, turbulence, and the contraction of the fluid stream as it exits the bore reduce the actual flow compared to the ideal mathematical model. For a detailed breakdown of the mathematical variables involved in Flow Rate Calculation, engineers often refer to the Reader-Harris/Gallagher equation, which is the foundation of modern ISO standards.

Fluid density (rho) is another critical factor. In Malaysian industrial settings, density must be calculated at specific operating temperatures, measured in degrees Celsius. Because liquids and gases expand or contract with temperature changes, using a static density value leads to inaccurate reporting. This is particularly vital in oil and gas custody transfer, where even a fraction of a percent in measurement error results in significant financial discrepancies. Totalmas provides the high-precision flow meters and technical support needed to ensure these variables are correctly integrated into your plant’s control systems.

Calculating the Beta Ratio (d/D)

The Beta Ratio is the ratio between the orifice bore diameter (d) and the internal pipe diameter (D). It’s a dimensionless number that defines the sensitivity of the meter. For most industrial applications, maintaining a beta ratio between 0.3 and 0.7 is ideal. A low ratio creates a larger pressure drop, which is easier to measure but causes higher permanent pressure loss. Conversely, a high beta ratio reduces pressure loss but limits the meter’s ability to detect low flow rates. Choosing the right ratio is a balancing act between measurement rangeability and pumping energy costs.

Adjusting for Reynolds Number and Viscosity

Fluid viscosity plays a major role in how a fluid behaves as it passes through the orifice. In palm oil processing, where oils can become highly viscous if temperatures drop below 40 degrees Celsius, the Reynolds number becomes a primary concern. The Reynolds number helps determine if the flow is laminar or turbulent. High-viscosity fluids shift the discharge coefficient, requiring specific corrections to the orifice plate flow meter calculation. If your facility deals with aged piping, you must also factor in pipe roughness. Internal corrosion or scaling can alter the friction factor, further complicating the measurement. Our team at Totalmas assists factory managers across Peninsular and East Malaysia, including Sabah and Sarawak, in selecting the correct instrumentation to handle these specific fluid characteristics. We prioritize fast shipping and comprehensive technical support to keep your operations running smoothly.

Critical Design Factors for High-Accuracy Measurement

Achieving precision in flow measurement is a physical challenge as much as a mathematical one. If your installation doesn’t provide a fully developed flow profile, even the most precise orifice plate flow meter calculation will fail. Turbulence from a nearby valve or a 90-degree elbow creates “noise” in the differential pressure signal, leading to erratic readings. To prevent this, engineers must adhere to the straight pipe requirements outlined in ISO 5167-2:2022. This often involves maintaining a straight run of at least 20 diameters upstream, ensuring the fluid enters the plate in a predictable state. Without these straight runs, the discharge coefficient becomes unpredictable, rendering your data unreliable for process control.

Totalmas understands that Malaysian factory environments, from the coastal refineries of Terengganu to the palm oil mills of Sabah, present unique installation hurdles. We provide the technical support necessary to evaluate your piping geometry and recommend the best hardware for your specific site. Our commitment to fast shipping ensures that critical components reach your facility in Peninsular or East Malaysia without delay, keeping your operations on schedule.

Pressure Tap Locations and Their Impact

The placement of your pressure taps significantly influences the reliability of your readings. Flange taps are the most common choice for Malaysian industrial plants because they’re pre-drilled into the flange itself, simplifying maintenance and replacement. For specialized applications requiring extreme precision, D and D/2 taps or Vena Contracta taps are used to capture the maximum pressure drop. However, these require precise field drilling and welding, which isn’t always feasible in a busy refinery. Selecting the wrong tap location can introduce signal noise, making it difficult for your control systems to maintain a steady flow. Totalmas helps managers choose the right configuration based on their specific maintenance capabilities and accuracy requirements.

Corrosion Resistance in Oil & Gas and Palm Oil

Material selection is where many generic engineering guides fall short. In the Malaysian palm oil sector, raw effluents and high-temperature processing liquids can be highly erosive. If the sharp upstream edge of the orifice bore begins to round or pit due to corrosion, your discharge coefficient changes, and your orifice plate flow meter calculation loses its foundation. While 316 Stainless Steel is a standard starting point, aggressive chemical environments in oil and gas often demand Monel or Hastelloy.

High-performance hardware must be paired with robust sensing technology. For processes operating at elevated temperatures, such as those found in waste heat recovery units, integrating high temperature pressure transmitters is essential for long-term stability. Totalmas ensures that your facility has access to these critical components regardless of location. Our technical support teams in Sarawak and Sabah are well-versed in the unique challenges of local refineries. We prioritize durable materials to ensure that a corroded plate doesn’t halt your production or lead to inaccurate billing in custody transfer applications.

Integrating Transmitters for Real-Time Monitoring

The days of relying on periodic manual readings and ledger-based calculations are over. Modern Malaysian facilities now utilize high-precision differential pressure (DP) transmitters to automate the orifice plate flow meter calculation in real time. These devices convert the physical pressure drop into a digital signal, typically 4-20mA or a HART protocol, which feeds directly into your plant’s SCADA or PLC system. This automation ensures that your flow data is always current, allowing for immediate adjustments to pump speeds or valve positions. It’s a critical step for maintaining the steady-state operations required in oil and gas refineries.

Totalmas provides the essential hardware for this digital transition, including Enovation Controls and Murphy Displays. These systems are designed to bridge the gap between raw sensor data and actionable insights. Whether your plant is in the heart of Selangor or a remote site in Sarawak, our team ensures you have the technical support needed for seamless integration. We prioritize fast shipping across both Peninsular and East Malaysia to keep your automation projects on track. To enhance your facility’s data visibility, you can explore our full range of flow meters and displays today.

Automated Flow Compensation

A static calculation fails to account for the dynamic nature of industrial fluids. As process temperatures fluctuate, sometimes exceeding 100 degrees Celsius in palm oil sterilization, fluid density changes significantly. Real-time compensation for temperature and pressure is vital to maintain accuracy. By integrating your sensors with a Murphy PowerView display Malaysia, you can visualize compensated flow data instantly. This integration significantly reduces the risk of human error during daily reporting and provides a clear window into your facility’s operational efficiency.

Maintenance and Recalibration Schedules

Electronic transmitters are reliable, but they aren’t immune to “drift.” This is a gradual deviation in the differential pressure signal that can skew your orifice plate flow meter calculation over time. Regular verification against a physical meter check is necessary, typically every six to twelve months depending on the fluid’s corrosivity. During these checks, it’s essential to perform a visual inspection of the orifice plate. Look for pitting or the rounding of the upstream edge. Even a fraction of a millimeter of wear can lead to significant measurement errors. Totalmas offers comprehensive technical support to help your team establish these maintenance protocols, ensuring your measurement systems remain accurate for the long term.

Sourcing Orifice Plates and Instrumentation in Malaysia

Totalmas stands as a specialized provider for Malaysian industrial sectors. We understand that an accurate orifice plate flow meter calculation is only as good as the hardware behind it. Our team provides customized orifice plate and flange design services tailored to your specific pipe diameters and fluid types. Whether your project involves a new palm oil refinery or an upgrade to an existing chemical plant, we ensure every component is machined to precise tolerances. We’ve built our reputation on being a steady hand for businesses that require high-performance fluid handling solutions.

Urgent factory replacements are handled with a focus on speed. We maintain a robust logistics network to provide fast shipping for orifice plates and related instrumentation. This service is designed to minimize downtime in high-stakes environments where a single faulty meter can disrupt an entire production line. We prioritize your operational continuity by ensuring that critical spare parts are delivered when and where they’re needed most.

Technical Support in Sabah and Sarawak

Remote oil and gas installations in East Malaysia face unique logistical and technical hurdles. Totalmas bridges this gap by offering comprehensive technical support across Sabah and Sarawak. Our engineers provide on-site consultations to ensure that your flow measurement systems remain compliant with Malaysian industrial safety standards and the latest ISO 5167-2:2022 guidelines. We don’t just ship products; we partner with you to ensure they’re installed and calibrated correctly for your specific site conditions.

Rapid response times are a hallmark of our service. If your plant experiences instrumentation troubleshooting issues, our team is equipped to assist with field verification and recalibration. We prioritize the reliability of your data, especially in offshore or remote inland locations where access to specialized expertise is often limited. This commitment to local support provides a sense of security for factory managers overseeing complex, high-value assets.

Totalmas: Your Partner for Industrial Excellence

Achieving precision requires a holistic approach to fluid handling. By sourcing from Totalmas, you gain access to a wide range of high accuracy flow meters that integrate seamlessly with our other offerings. We provide more than just plates. We offer a complete ecosystem that includes ANSI and API centrifugal pumps, Enovation Controls, and waste heat recovery units. This allows you to streamline your supply chain with a provider that understands the nuances of the Malaysian market.

This comprehensive approach allows you to consolidate your procurement through a single, reliable point of contact. Our Kuala Lumpur headquarters serves as the hub for specialized engineering quotes and long-term project planning. We invite factory managers to reach out for a professional consultation. We’re committed to your facility’s operational success through proven reliability and expert technical guidance. Our goal is to ensure your orifice plate flow meter calculation remains precise, regardless of the environmental challenges your facility faces.

Optimizing Your Flow Measurement for Long-Term Efficiency

Mastering the orifice plate flow meter calculation is a foundational step toward operational excellence in Malaysia’s competitive industrial landscape. By prioritizing correct pressure tap configurations and selecting corrosion-resistant materials, your facility can avoid the inefficiencies that plague unoptimized systems. Integrating modern digital displays ensures that these calculations provide real-time value, allowing for precise control in palm oil and oil and gas processing.

With 33 years of industrial experience in Malaysia, Totalmas provides the steady hand and technical expertise needed to support your facility’s goals. As an authorized distributor for Enovation Controls and Murphy Displays, we offer comprehensive technical support and fast shipping across Peninsular Malaysia and East Malaysia, including Sabah and Sarawak. We’re committed to helping you achieve reliable, high-accuracy measurements that stand the test of time and harsh environmental conditions.

Contact Totalmas for Expert Flow Meter Selection and Technical Support to ensure your plant operates with maximum precision and minimal downtime.

Frequently Asked Questions

What is the standard formula for orifice plate flow rate calculation?

The standard formula is derived from Bernoulli’s principle and specifically adheres to the ISO 5167-2:2022 standard. This orifice plate flow meter calculation determines the mass flow rate in kilograms per second by measuring the differential pressure across the plate. Totalmas provides technical support to help your engineers implement these complex equations accurately within your facility’s control systems.

How does the beta ratio affect the accuracy of an orifice meter?

Accuracy is highest when the beta ratio remains between 0.2 and 0.75. If the ratio falls below or exceeds this range, the discharge coefficient becomes less predictable, leading to higher measurement uncertainty. For Malaysian palm oil mills, maintaining a ratio near 0.5 often provides the best balance between signal strength and permanent pressure loss.

Can orifice plates be used for both liquid and gas flow measurement?

Orifice plates are suitable for measuring liquids, gases, and steam across various industrial processes. When measuring gases, your calculation must incorporate an expansibility factor to account for changes in fluid density as it passes through the bore. Totalmas offers fast shipping of specialized plates for these diverse applications to both Peninsular and East Malaysia.

What are the most common materials for orifice plates in the Oil & Gas industry?

While 316 Stainless Steel is the baseline for most applications, the Oil & Gas sector often requires exotic alloys like Monel or Hastelloy. These materials resist the corrosive effects of sour gas or high-salinity fluids found in offshore environments. Totalmas assists in material selection to ensure your hardware withstands the specific chemical profiles of your local production site.

How much straight pipe run is required before and after an orifice plate?

Straight pipe requirements typically range from 20 to 44 pipe diameters upstream and at least 5 diameters downstream. The exact length depends on the presence of elbows, valves, or reducers that could cause turbulence. Proper installation ensures a fully developed flow profile, which is essential for a reliable orifice plate flow meter calculation.

What is the difference between flange taps and vena contracta taps?

Flange taps are located exactly 25.4 millimeters from the upstream and downstream faces of the plate, making them easy to maintain. Vena contracta taps are placed at the point of maximum fluid contraction to capture the highest possible differential pressure. Most Malaysian plants prefer flange taps due to their standardized design and simpler installation requirements.

How do I factor in fluid temperature changes in my calculation?

Fluid temperature must be measured in degrees Celsius and factored into the density calculation for every reading. Because density changes with temperature, failing to compensate will lead to significant mass flow errors. Totalmas provides high-precision transmitters that automate this compensation, ensuring your data remains accurate even as process temperatures fluctuate.

Why is my calculated flow rate different from the transmitter reading?

Discrepancies often arise from sensor drift, incorrect transmitter scaling, or physical degradation of the orifice bore. If the upstream edge of the plate becomes rounded by even a fraction of a millimeter, the actual discharge coefficient will shift. Our technical support teams in Sabah and Sarawak can help troubleshoot these variances to restore your system’s precision.
